第一步 apply light pencil stroke to give basic design and position on the page. (用鉛筆 輕輕的在紙上畫出大概的圖案和位置)

第二步 refining the shape of the object. (修飾物體的圖形)  第三步 apply heavier pencil stroke when design is confirmed. Then repeat the step 1 for other views. (當設計確定時 加上粗的鉛筆線條 然後重復同樣的步驟 在其它角度的草圖上)
第四步 lay in more design content.. (加多一點東西...)
第五步 a little guy for showing how to use the object. (畫一個人 解釋如何去使用這個產品)

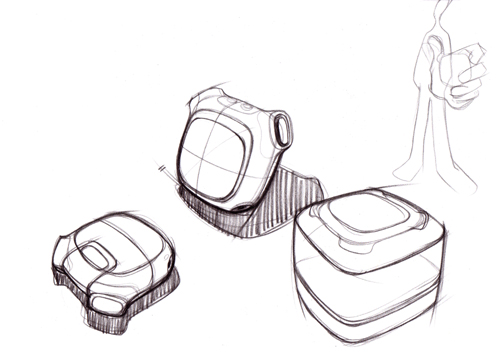

第六步 give shadows to make the drawn object jump out the page. (加上陰影 讓圖更跳)
第七步 apply heavy line weight to trace the light sketch. (再加上重線條在之前的草圖上)
第八步 more details.. (加細節...)
第九步 more details.. (加細節...)
